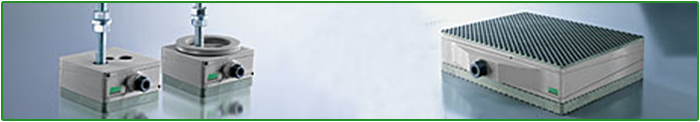

Precision Leveling Wedges, Series PK, free-standing

BILZ Precision Leveling Wedge PK are manufactured as a freestanding series. They can be bolted onto the machine and through to the foundation. The design permits the highest of precision leveling within the range of 1/100 mm. Creep from their preset positions due to vibration influence is prevented by a self-locking device. The large supporting surfaces of the leveling wedges permit optimum found-ation support and rigidity. High solidity and equally high vibration insulation is obtained through the addition of selected BILZ insulating plates.

Component Set A
Range of application: General tool and graphic machines, in particular machines with horizontal components. High anti-slip protection!

Component Set B
Range of application: Special design for CNC lathes, surfaces and cylindrical grinders, drilling and milling machines, machining centers, transfer lines.

Component Set C
Range of application: For highly effective insulations in the active and passive range. In particular when used on upper floors. Please ask our advice, without obligation, regarding any critical situation.

Component Set D
range of application: For machines with extremely high dynamic fraction such as presses, stamping machines, shears etc.

Component Set E
range of application: For all machines and systems requiring no vibration insulation. Ideally suited for assembly. Good stability due to nonslip character of plates extremely low construction!

Component Set F
range of application: For extremly high loadability. Very high level constancy.

Precision Leveling Wedges, PKA Series (bolt-on)
BILZ precision leveling wedge PKA are used where a firm mounting with the machine is required. Preferably on machines with a high axial thrust such as die-casting machines, injection machines, shock testing machines, and cold extrusion presses etc. range of application: lathes, horizontal drilling machines, surface and cylindrical grinders, machining centers

Precision Leveling Wedges, Series PKD (bolt-through)
BILZ precision leveling wedge PKD are used for machines which need to be fixed to a foundation, due their unfavourable stability. Also for machines which must be "squeezed" or "pulled" when being aligned – e.g. for machines with little natural rigidity! range of application: drilling and milling machines, machining centers, special machines, long lathes, long planers.

Precision Leveling Wedges with spherical seating Precision Wedge Mounts, Series PKAK (bolt-on) Series PKDK (bolt-through)
BILZ precision leveling wedge PKAK / PKDK are used to compensate angular differences between machines and foundations. Especially for machines with a long bed and high demands in alignment.range of application: drilling and milling machines, machining centers, special machines, long lathes, long planers
